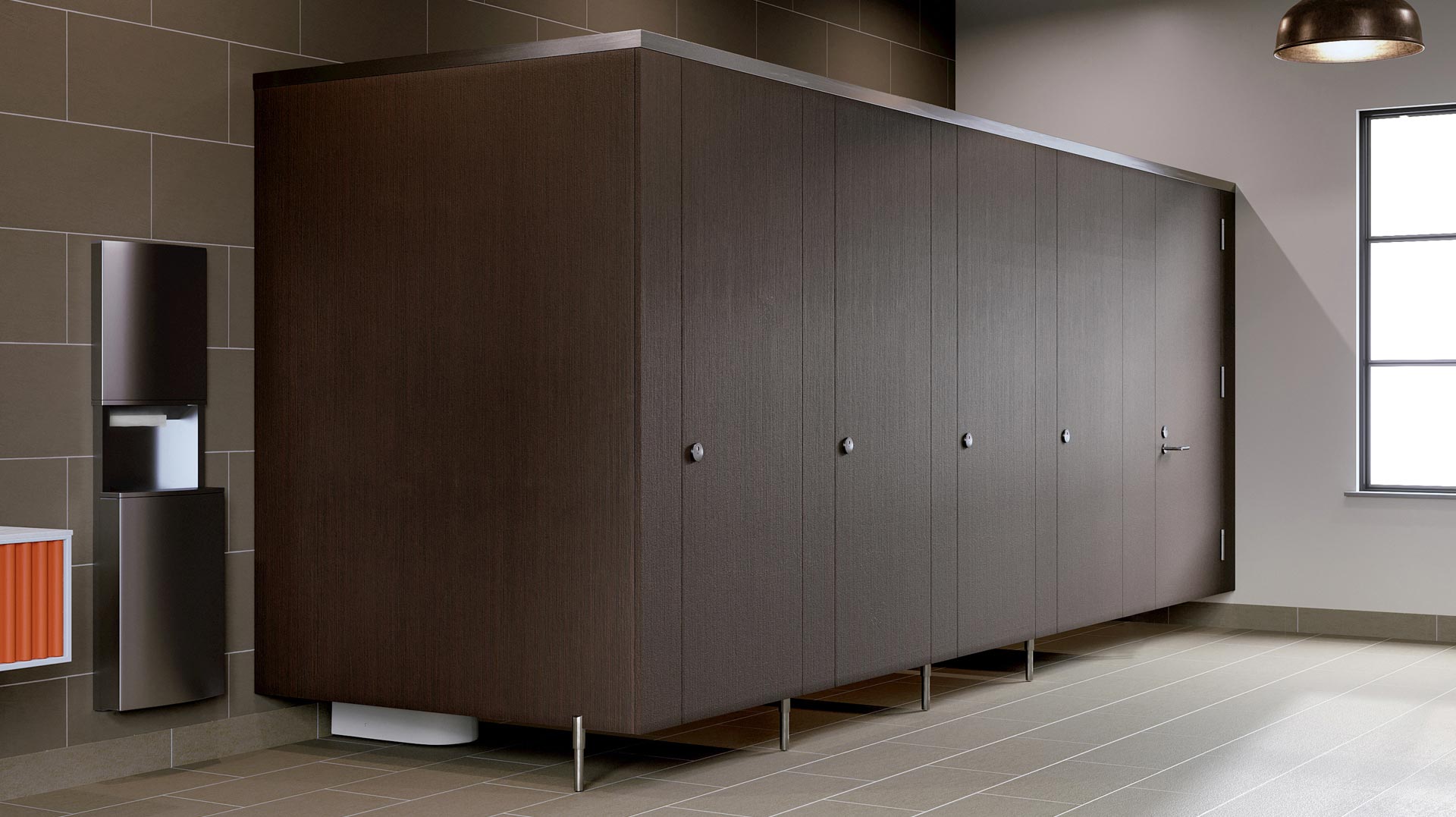

Bobrick PRIVADA® Cubicles — Authorized Distributor & Certified Installing Dealer
Built for
Privacy
and Elevated Design
Bobrick sells PRIVADA® through limited distribution, and the manufacturer's guide specification requires that installation be performed by a trained and authorized PRIVADA® dealer. Restroom Stalls and All holds both credentials — we furnish the system as an authorized distributor and self-perform the installation with our own W2 crews across the Southeast, and we ship nationwide.
- Authorized PRIVADA® distributor — a limited distribution line
- Certified installing dealer, as the guide specification requires
- In-house W2 crews across GA, AL, TN, SC, NC and FL
- Interlocking panels block line-of-sight at every connection
- Components customizable up to 96 inches
- Made in the USA, backed by a ten-year limited warranty
Fast Turnaround Times
Contractor-Friendly Support
Nationwide Shipping
Installation Available
Quick Spec Snapshot
Everything you need to know about Bobrick PRIVADA® cubicles, scannable at a glance.
Distribution & Installation
- Authorized PRIVADA® distributor — limited distribution line
- Certified installing dealer, required by the guide specification
- In-house W2 crews: GA, AL, TN, SC, NC, FL
- Ships nationwide
Finishes
- 29 stock HPL colors (Wilsonart & Formica)
- Real wood veneer laminate
- Solid color-thru laminate per guide specification
- Any Wilsonart or Formica finish on request
Best Applications
- Class-A Offices & Marquee Properties
- Luxurious Hotel Lobbies & Luxury Suites
- VIP Lounges and High-End Restaurants
- Private Aviation Terminals & FBOs
Dimensions
- 82in overall cubicle height (standard)
- 72in doors and panels, 9in floor clearance
- Custom components up to 96in
- 1in finished thickness, flush front
Privacy & Hardware
- Line-of-sight blocked at all connection points
- Occupancy indicator, white / red
- 304 stainless hinges, self-close 4-10 seconds
- All fasteners concealed, inside and out
Mounting
- Floor-anchored and overhead-braced
- Concealed frame and mounting brackets
- Recessed foot pedestals, +1.5in / -0.5in adjustment
- Wall backing required, wood or steel studs
Warranty & Testing
- Ten-year limited warranty on HPL doors and panels
- Hardware cycle-tested to 100,000 operations
- ASTM E84 Class B standard, Class A achievable
Typical Lead Time
- 6-8 weeks High Pressure Laminate
- 10-12 weeks wood veneer
- Longer above ~15 compartments
WHY PRIVADA®?
Bobrick builds PRIVADA® around six ideas. They are the manufacturer's own, and they describe the product better than a feature list does.
PRIVADA® is specified in spaces that demand:
- Genuine privacy, with line-of-sight blocked at every connection point
- A finished look that reads as architecture rather than as a partition
- Hardware and fasteners that stay out of view, inside and out
Two credentials sit behind every PRIVADA® package we quote. The first is distribution: Bobrick sells PRIVADA® through limited distribution, so most Division 10 suppliers cannot price the line and will offer a substitute instead. Restroom Stalls and All is an authorized PRIVADA® distributor and can quote the system as specified. The second is installation, and Bobrick writes it into the specification itself — installation must be performed by a trained and authorized PRIVADA® dealer/installer. We are a certified installing dealer and we self-perform the work with our own W2 crews rather than subcontracting it, across Georgia, Alabama, Tennessee, South Carolina, North Carolina and Florida, and we ship nationwide. For a project that means one accountable party from submittal through punch list: the company that quoted the package is the company on site setting it.
Private
Interlocking door and fascia panels with an anodized aluminum edge eliminate line-of-sight. Occupancy indicators inform patrons when compartments are in use, showing white when unoccupied and red when occupied behind a clear protective window.
Floating
Recessed foot pedestals and a flush headrail support the compartments so they appear suspended without compromising stability, with +1.5 / -0.5 inches of pedestal adjustment to absorb floor variance.
Tailored
Customizable finish, hardware and height options. All fasteners on panel surfaces and connection points are concealed, with continuous U-Channel, L-Channel and T-Channel brackets carrying screw cover channels.
Serene
Self-closing doors provide a smooth, gradual closing speed of at least 4 seconds on standard doors and up to 10 seconds on ADA compartments, with an absorbent bumper along the door edge to minimize noise.
Built to Last
Mechanical parts have undergone 100,000 cycle-tests without failure, and the system is backed by a ten-year limited warranty on HPL doors and panels.
American Designed, American Made
Designed in California and manufactured in the American heartland. Contributes LEED points for Recycled Content, Rapidly Renewable and Low Emitting Materials, with a notarized Certificate of Origin available at closeout.
Options & Configurations
Select a category below to explore the finishes, heights, hardware and mounting configuration available for your project.
FINISH OPTIONS
Bobrick describes the PRIVADA® finish range as virtually limitless. PRIVADA® can be fabricated with any finish offered by Wilsonart®, Formica® or by other HPL manufacturers on request.
High Pressure Laminate
High-pressure laminated plastic over a 45 lb density, industrial-grade, resin-impregnated particle board substrate in 3-ply construction. 29 stock colors by Wilsonart and Formica, with any other finish from either manufacturer available on request. Solid color-thru laminate doors and fascia panels with matching HPL divider panels are also available under the guide specification. Shortest lead time at 6-8 weeks. Shown in HPL woodgrain, Sterling Ash by Wilsonart.
Wood Veneer Laminate
Real wood veneer laminate for projects where the restroom needs to follow a millwork palette, with veneers from other manufacturers available on request. Divider panels wider than 48in will show a seam due to veneer material width. Lead time 10-12 weeks. Shown in Weathered Teak by Laminart.

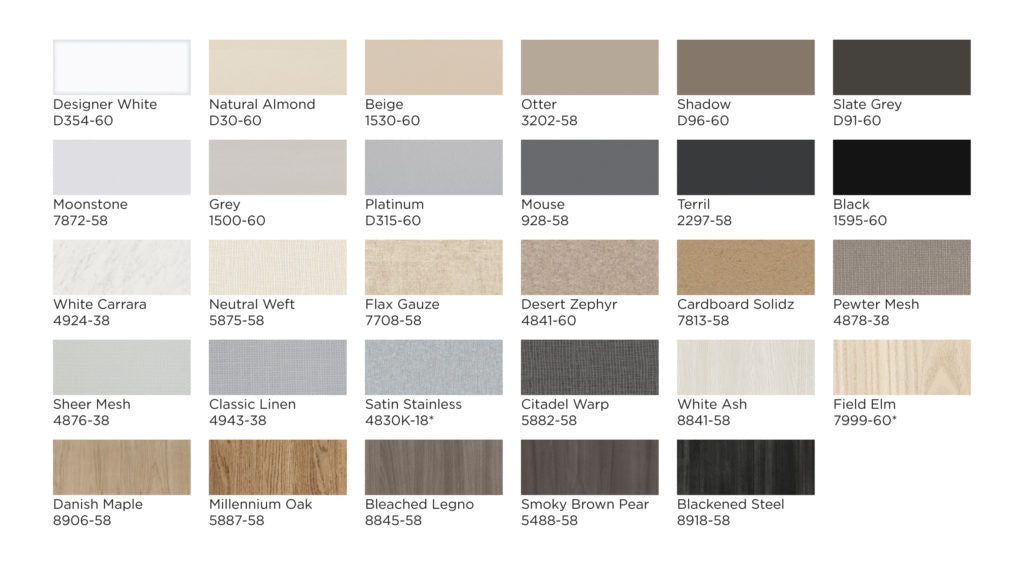

Stock Color Guide
The stock HPL chart runs from Designer White, Natural Almond and Beige through Pewter Mesh, Citadel Warp, Millennium Oak and Blackened Steel, and ships on standard lead time. Send us the building's finish schedule and we will match to it, or pull a custom Wilsonart or Formica selection if nothing on the chart lands.
HEIGHT CONFIGURATIONS
Height is the option most design teams do not realize they have. PRIVADA® is built to order, so components are specified to the project rather than pulled from a fixed catalog height.

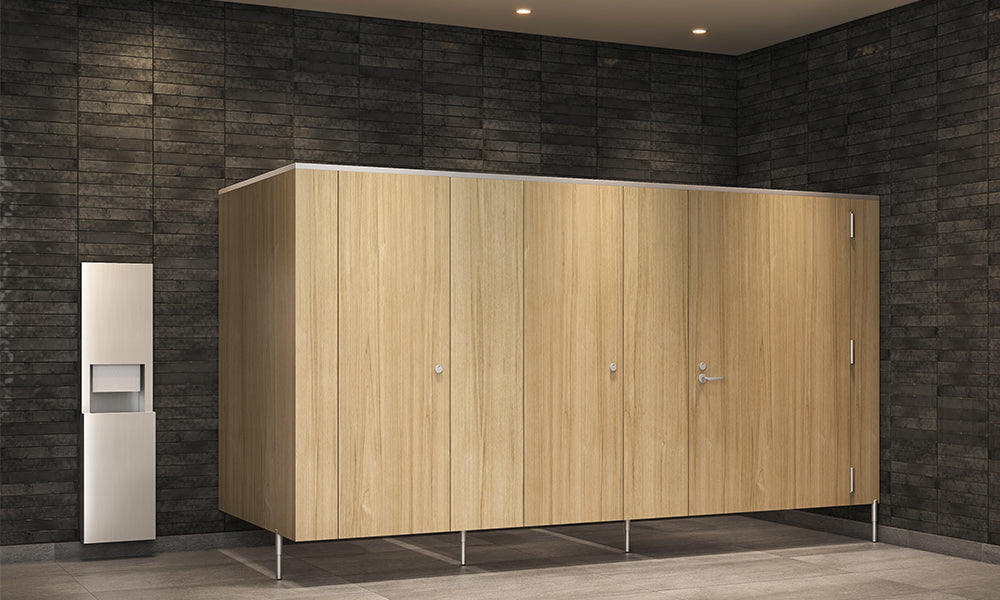

Standard Height
72in doors, fascia panels and divider panels on 9in recessed foot pedestals, for an overall cubicle height of 82in to the top of the headrail. This is Bobrick's standard build and carries the shortest lead time.

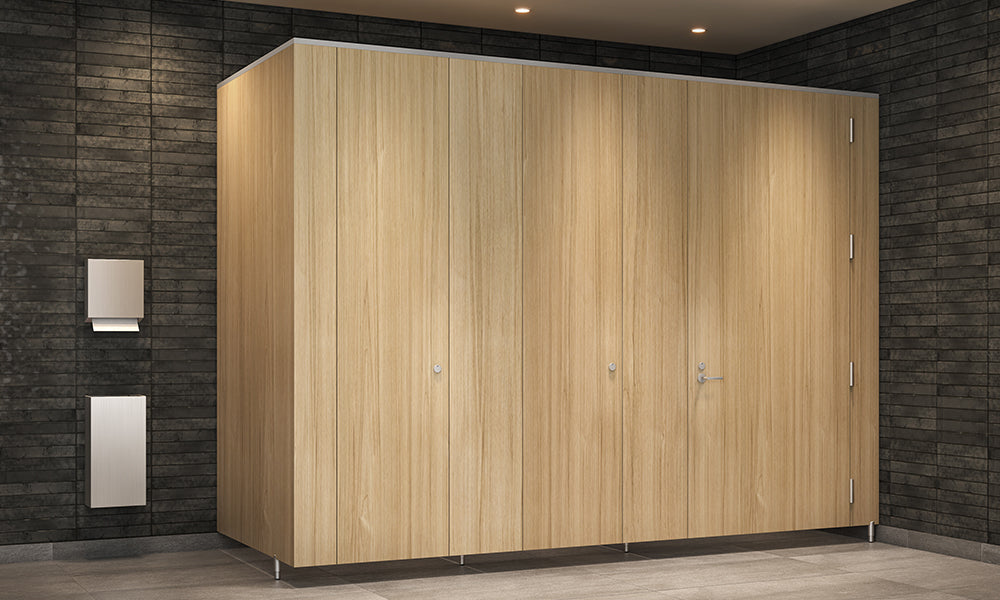

Extended and Custom Height
Custom components run up to 96in, with an optional 4in floor clearance in place of the standard 9in. Heights between the two builds are available: the Atlantic Aviation FBO terminal in Birmingham was built at 85-7/8in components on 9in pedestals, roughly 95in overall.

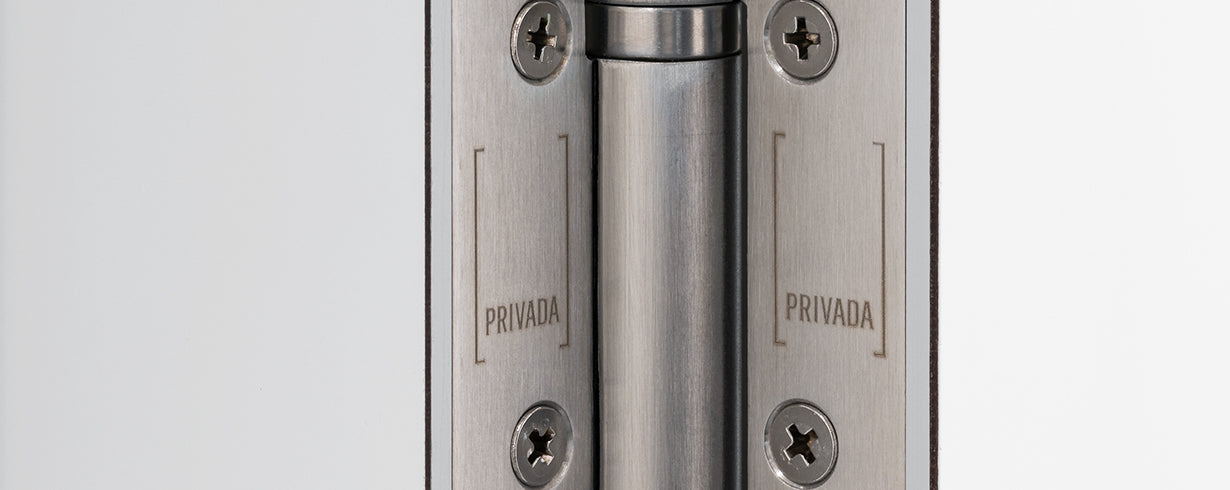

Interlocking Edge at Any Height
Whatever the height, the privacy comes from the same detail: door and fascia edges surfaced in anodized aluminum with an interlocking profile, hinges mortised into the edges, and line-of-sight blocked at all connection points. Doors and panels carry a 1in finished thickness for a flush front. ASTM E84 Class B fire rating standard, Class A achievable by finish selection.
HARDWARE OPTIONS
PRIVADA's minimalist hardware makes a sophisticated design statement. Stainless steel door hardware with concealed fasteners and connection points comes standard, and finishes are selected to coordinate with the rest of the restroom package.

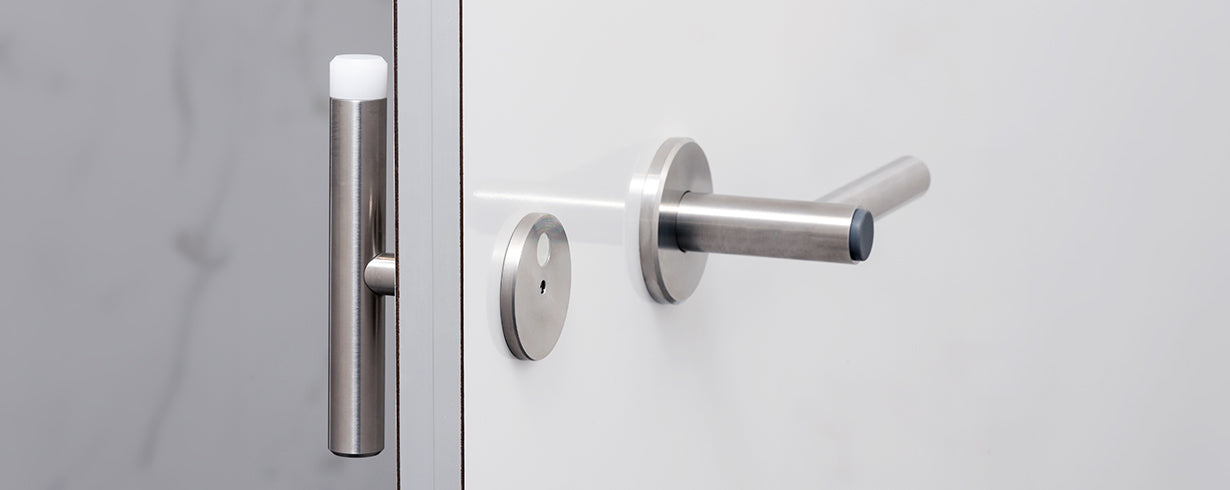

Anodized Aluminum or Stainless Steel
Door hardware and pedestals in anodized aluminum matte finish or 304 stainless steel #4. Hinges are 18-8 Type-304 stainless steel in satin finish, single-action spring, concealed, and are available in stainless only. Package includes the occupancy indicator with emergency access release via a 3 mm Allen slot and a brushed stainless coat hook with integral bumper.

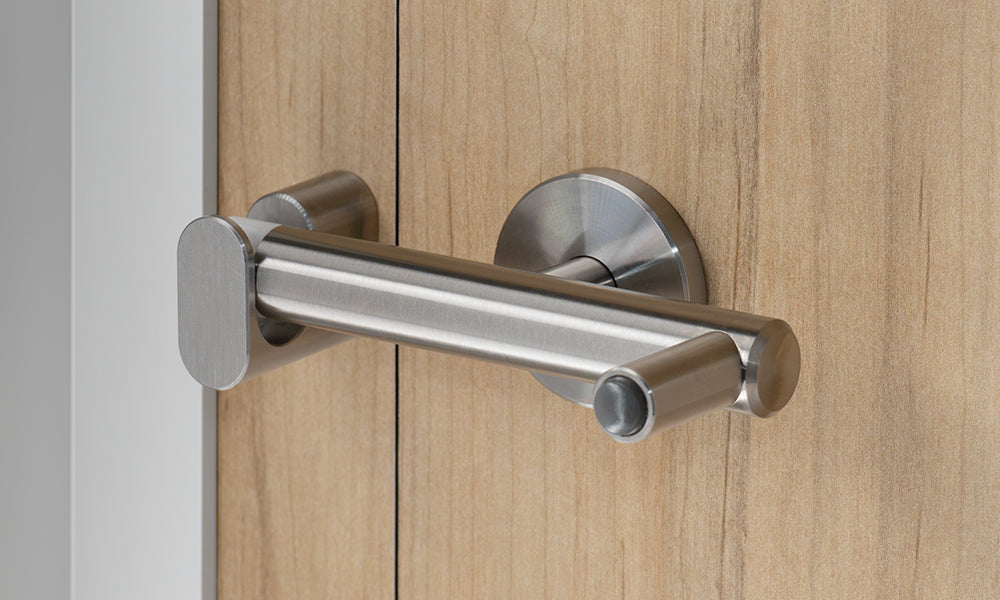

Hands-Free Latch
An optional latch for projects where hygiene is a priority, allowing the compartment door to be operated without hand contact. The standard interior handle auto-retracts at 45 degrees of door opening, and latch and keeper locks confirm the compartment is secured.

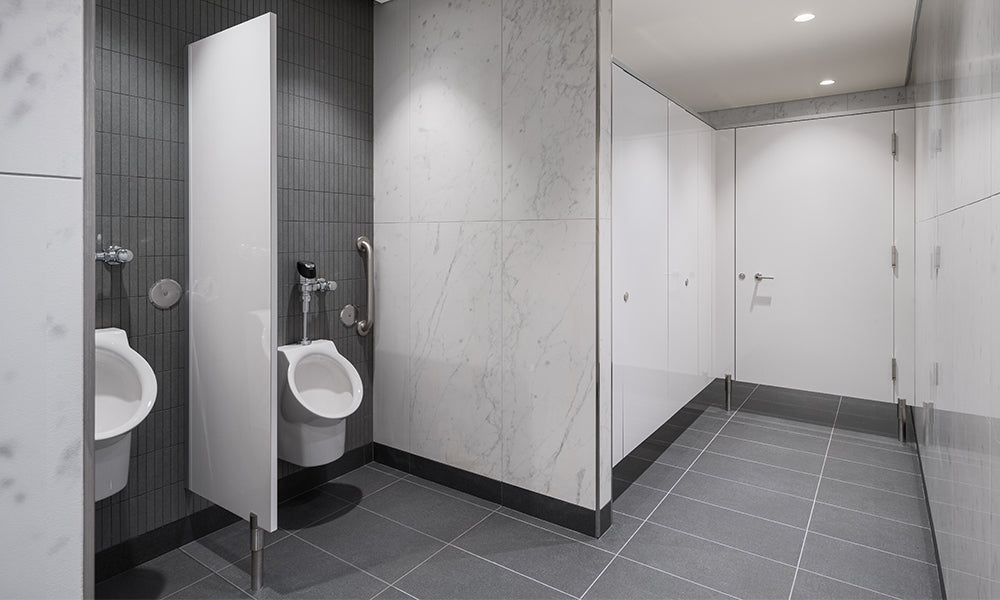

Matching Urinal Privacy Screens
Floor-anchored PRIVADA® urinal privacy screens to a maximum 24in width, with hardware matched to the compartments and specified in the same section. Screens can be set on 9in pedestals to carry the same floating line as the compartment run.
MOUNTING CONFIGURATION
PRIVADA® is built in one configuration: floor-anchored and overhead-braced, engineered around a concealed frame that makes the flush front possible. It is not a ceiling-hung or floor-to-ceiling product — the privacy comes from the interlocking edge details and the panel height, not from meeting the slab above.

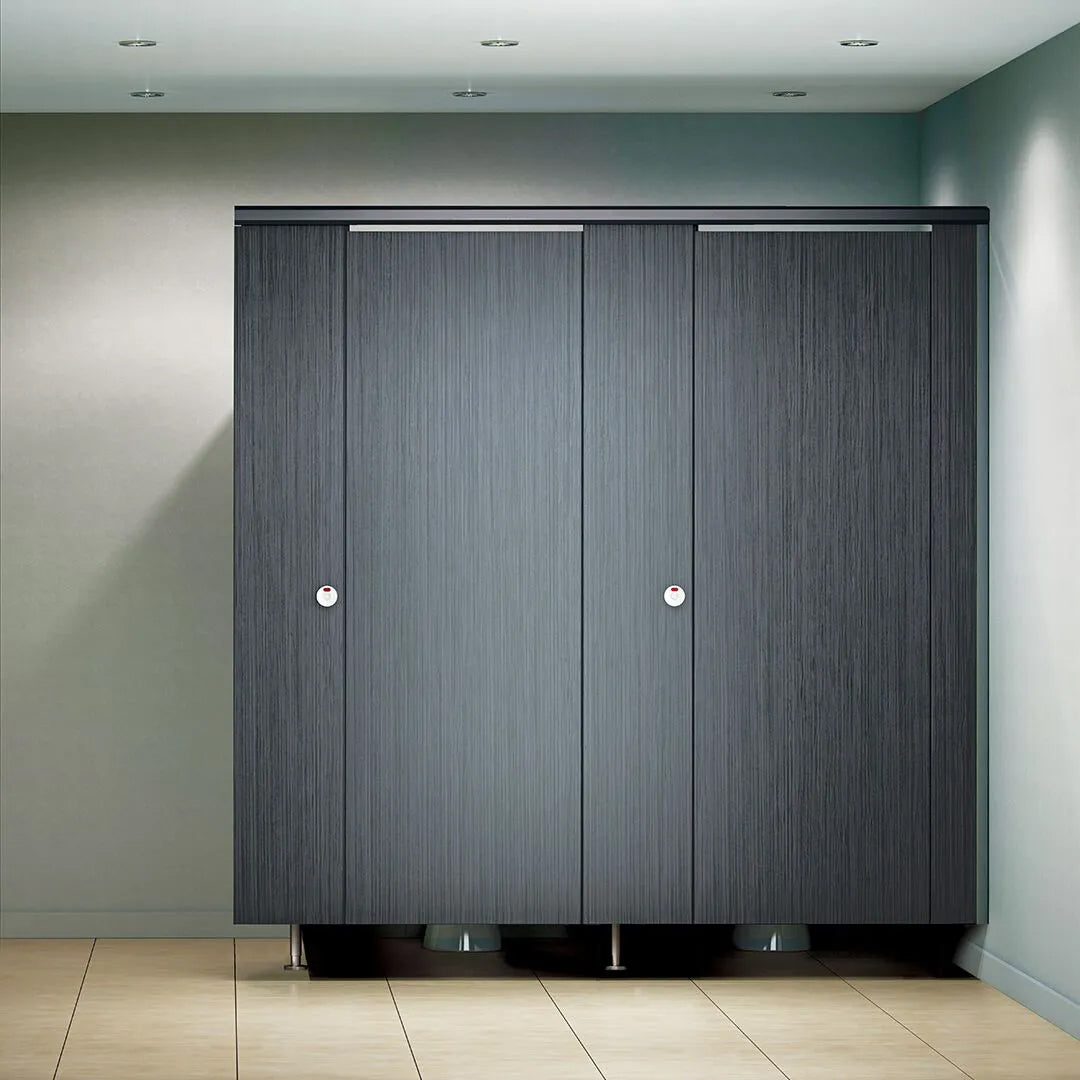

Floor-Anchored, Overhead-Braced
Floor-anchored with wedge anchors and overhead-braced with threaded rod assemblies. A 1in extruded anodized aluminum headrail is secured to the wall with a concealed mounting bracket, set with a 1/8in spacer gap above the components. Wall backing is required, wood or steel studs. Shown on a premium full-height cubicle so the configuration reads the way it will actually be built, rather than as a standard-height compartment.
PRIVADA® Built in That Configuration
The same mounting, shown as PRIVADA®. Doors and fascia panels run to full height with the interlocking anodized aluminum edge closing the sightline at every connection, the headrail sits flush across the top, and the panels carry on recessed foot pedestals rather than on visible pilasters. No fasteners are visible from outside the compartment, and none from inside.
Recessed Foot Pedestals
Cylindrical 9in pedestals in anodized aluminum or 304 stainless steel support the divider panels, hold the toe clearance, and create the signature floating effect. Each carries +1.5in / -0.5in of adjustment to absorb floor variance — the feature our installers appreciate most, because real floors are never as flat as the drawings.
Not sure which configuration fits your project?
Get In Touch With SalesHow It Works
Simple. Clear. Repeatable.
Submit Your Layout or Spec
Send drawings, finish schedules, or product callouts.
Receive Pricing + Submittals
We review, quote accurately, and provide documentation.
Approve & Order
Clear timelines. No guesswork.
Ship or Schedule Installation
Delivered where you need it—or professionally installed.
No confusion. No unnecessary back-and-forth. Just a clean process that respects your time.
FAQ
Frequently Asked Questions
Yes. We provide full submittal packages aligned with project specifications.
Compare Partition Systems
A high-level overview of where PRIVADA® sits relative to the other partition systems we furnish and install.
| Factor | PRIVADA® Highest Privacy | Plastic Laminate | Phenolic | Stainless Steel | Powder-Coated Steel |
|---|---|---|---|---|---|
| Sightline Control | Blocked at all connections | Standard | Standard | Standard | Standard |
| Hardware | Concealed fasteners | Exposed | Exposed | Exposed | Exposed |
| Finish Range | HPL, Veneer, Color-Thru | Broad | Solid / Clean | Satin, Textured | Color-Customizable |
| Max Component Height | 96 in | Standard | Tall door options | Tall door options | Tall door options |
| Cost Tier | Premium | Moderate | Mid-High | Premium | Economy |
| PRIVADA® = maximum privacy + concealed hardware + architectural finish range. Where a project needs moisture resistance for wet areas, phenolic or solid plastic is the better fit. Comparison is high-level and project-specific factors may vary. | |||||
