Product Description

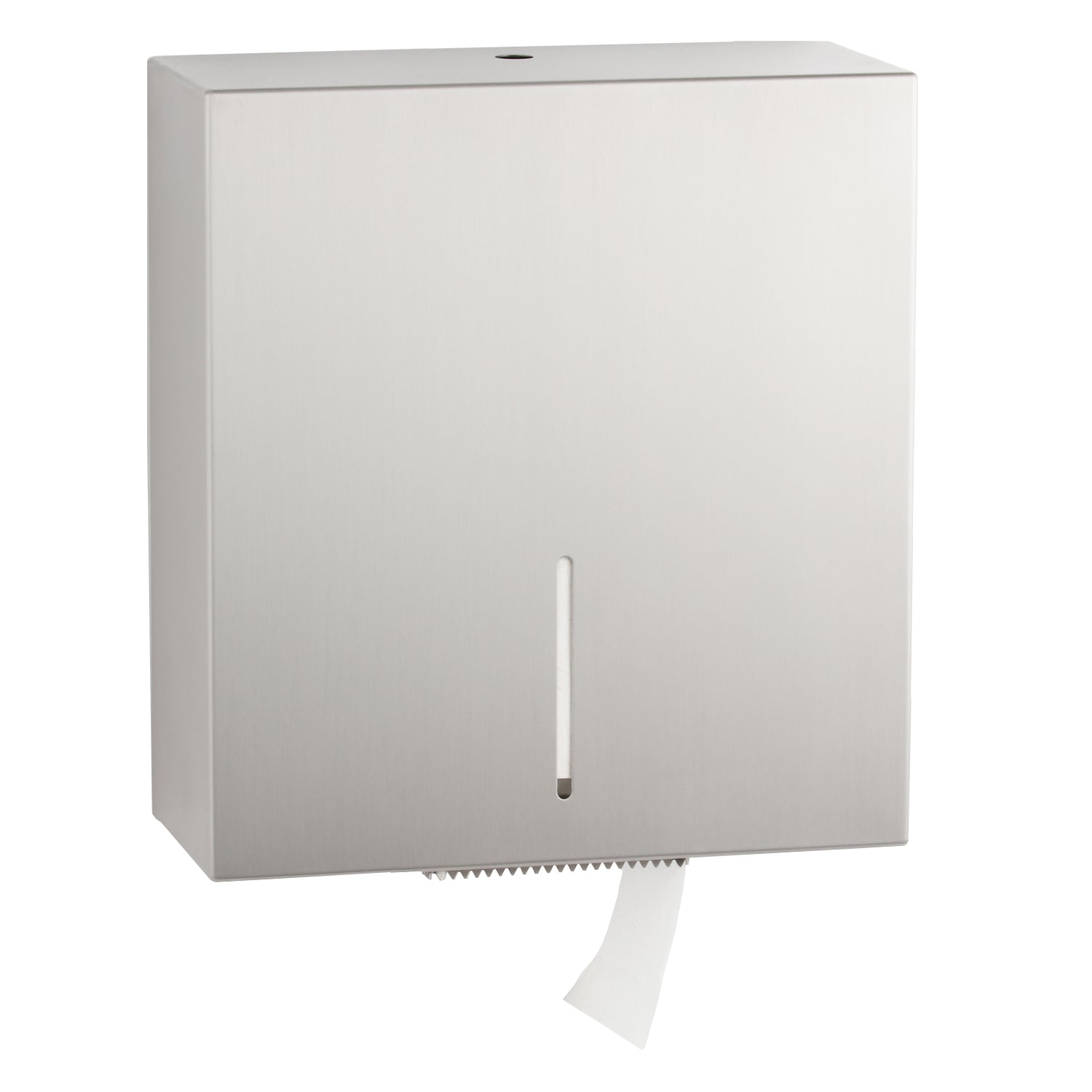

Fino Collection surface-mounted and seam-welded stainless steel single jumbo toilet roll holder with a flush lock. Spindle holds up to 10" (255mm) diameter roll with 1-5/8" (40mm) diameter core; convertible with furnished adapters for 3" (75mm) or 2-1/8" (55mm) diameter core rolls. Cabinet is type 304, 18-gauge stainless steel, satin finish, all seam-welded construction. Unit swings down to horizontal position for loading the tissue roll. Overall size 11-11/16" W x 12-15/16" H x 7-3/4" D (297 x 329 x 197mm).
Documents
- Bobrick B-9890 technical data sheet (PDF): dimensions, mounting and installation details.
- Bobrick B-9890 product page: CAD drawings, BIM objects and guide specifications.
Need submittals for a full Division 10 package? Email us your schedule and we will send the full submittal set with pricing.
