JL Industries Cosmopolitan C3033 Surface Fire Extinguisher Cabinet, Stainless Steel, 19-3/16 x 35-3/16 x 8 in
JL Industries Cosmopolitan C3033 Surface Fire Extinguisher Cabinet, Stainless Steel, 19-3/16 x 35-3/16 x 8 in
- Overview
- Reviews
Product Description
The JL Industries Cosmopolitan C3033 is a surface-mounted stainless steel fire extinguisher cabinet for up to 20 lb portable extinguishers, in a larger 16 x 32 in tub. It has a 19-3/16 x 35-3/16 x 8 in overall cabinet size. Type 304 stainless steel door and trim, #4 finish. Restroom Stalls and All is an authorized JL Industries dealer. We ship nationwide, and our own W2 crews furnish and install JL Industries cabinets in our Southeast service area.
Door Styles and Glazing
- Full View (F, G): one full-height window; G adds a Saf-T-Lok.
- Horizontal Duo (D, E) and Vertical Duo (V, W): the window is split into two panels; E and W add a Saf-T-Lok.
- Small Window with Saf-T-Lok (B10): a small view window in a locking door.
- Solid (S21, L22): no glazing; L22 adds a Saf-T-Lok.
Glazing for the glazed doors: clear acrylic (code 10, standard), clear safety glass (18), bronze acrylic (15) or gray acrylic (16). The part number is C plus the model plus the door and glazing code, for example C3033F10.
Fire Rating
Surface-mounted cabinets do not penetrate the wall, so no fire-rated version is offered.
Specifications
| Manufacturer | JL Industries (Activar Construction Products Group) |
| Series | Cosmopolitan |
| Model | C3033 |
| Material | Stainless Steel |
| Door and trim | Type 304 stainless steel door and trim, #4 finish |
| Tub | Stainless steel |
| Mounting | Surface |
| Trim | Square edge, surface mount |
| Overall size | 19-3/16 x 35-3/16 x 8 in |
| Holds | up to 20 lb, in a larger 16 x 32 in tub |
| Hinge | Continuous |
| Accessibility | Surface cabinets project from the wall. Check mounting height and projection against the 2010 ADA Standards, Sections 307 and 308 |
| Ship weight | 38 lb (standard) |
| Specification section | 10 44 13, Fire Protection Cabinets |
Documents
JL Industries Cosmopolitan product page, submittals and installation guides. Mounting dimensions are listed on the submittal.
Project pricing
Send us your plans or Division 10 schedule and we will price the cabinets, extinguishers and accessories together with your partitions and restroom accessories. Email your schedule or call 1-844-81-STALL.
See every JL Industries Cosmopolitan stainless steel cabinet, all JL Industries fire extinguisher cabinets, or compare both brands on our fire extinguisher cabinets page.

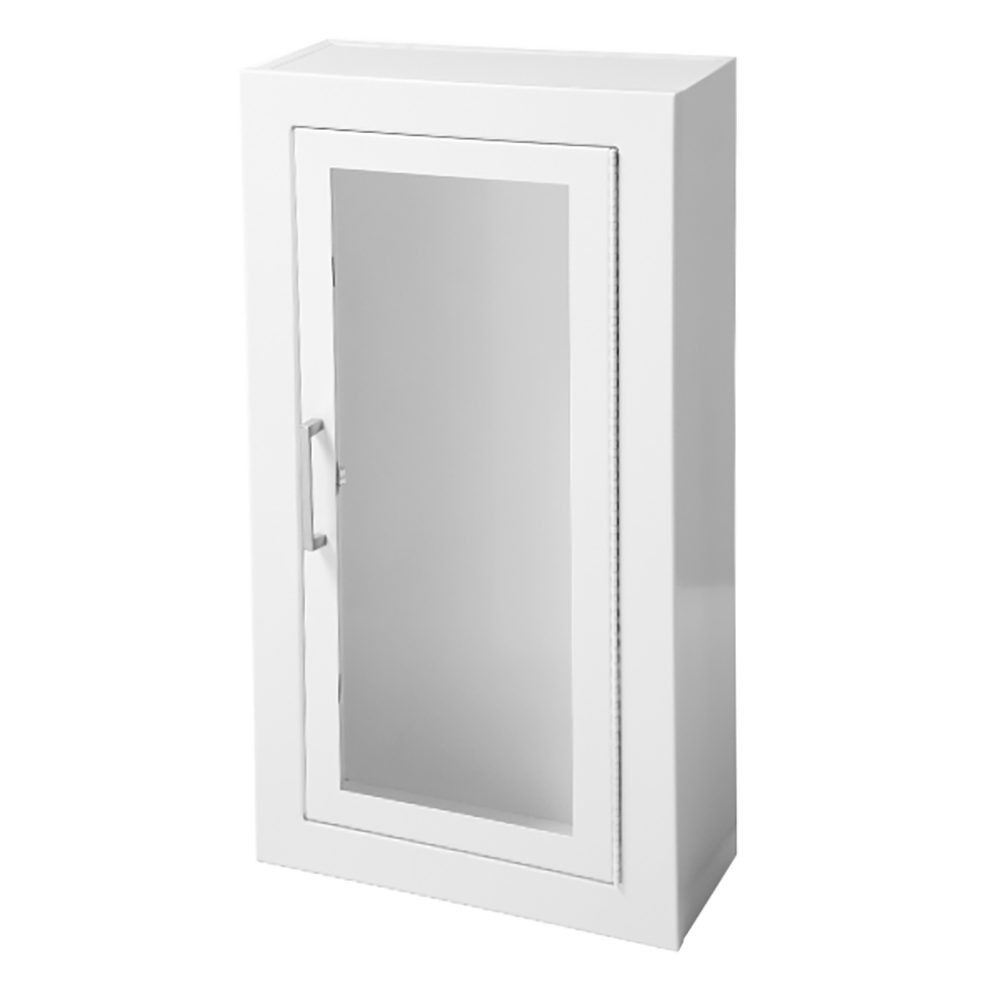

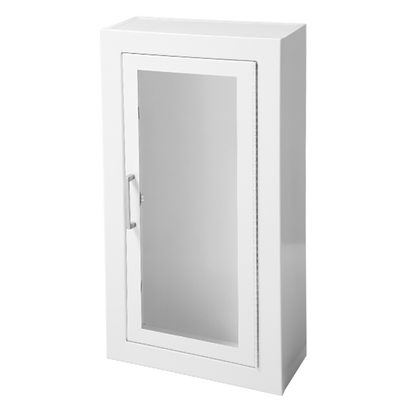

Product images courtesy of JL Industries. The surface mount view shows the steel model.
