Product Description

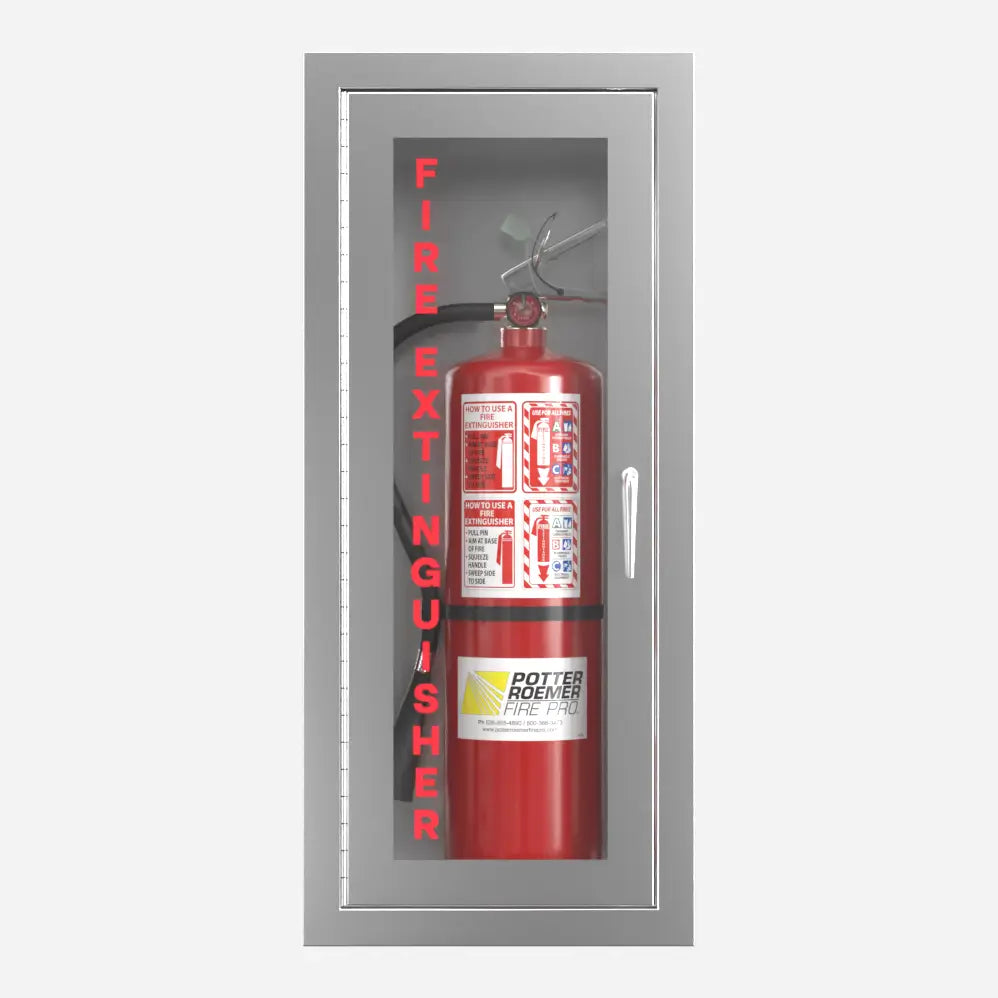

The Potter Roemer Alta 7044 is a surface-mounted aluminum fire extinguisher cabinet for portable extinguishers up to 10 lb. It has an 11-1/2 x 26-1/2 x 5-3/4 in overall cabinet size. The door and frame are aluminum, clear anodized finish. Restroom Stalls and All is an authorized Potter Roemer dealer and installer. We ship nationwide, and our own W2 crews furnish and install fire extinguisher cabinets in our Southeast service area.
Door Styles
- A, Full Glass: Full tempered safety glass door
- B, Break Glass: Break-glass door with lock and Break Rite handle
- D, Duo Panel: Duo-panel door with tempered safety glass
- DV, Duo Vertical: Duo-vertical panel door with tempered safety glass
- E, Break Glass 25 sq in: 25 sq in tempered break-glass panel with Break Rite handle
- F, Flush Solid Metal: Flush solid metal door, no glass
Fire Rating
Surface-mounted cabinets do not penetrate the wall, so no fire-rated version is offered.
Specifications
| Manufacturer | Potter Roemer (Morris Group International) |
| Series | Alta 7000 |
| Model | 7044 |
| Material | Aluminum |
| Mounting | Surface |
| Trim | None (surface) |
| Box size | 11-1/2 x 26-1/2 x 5-3/4 in (overall cabinet size) |
| Typical extinguisher | up to 10 lb |
| Door and frame | Aluminum, clear anodized finish |
| Hinge | Continuous |
| Glazing | Tempered safety glass (glazed door styles) |
| Accessibility | Surface cabinets project from the wall. Check mounting height and projection against the 2010 ADA Standards, Sections 307 and 308 |
| Ship weight | 21 lb (standard) |
| Specification section | 10 44 13, Fire Protection Cabinets |
Documents
Potter Roemer product page, submittal and brochure. Mounting dimensions are listed on the submittal.
Project pricing
Send us your plans or Division 10 schedule and we will price the cabinets, extinguishers and accessories together with your partitions and restroom accessories. Email your schedule or call 1-844-81-STALL.
Compare every mounting style, finish and door option on our fire extinguisher cabinets page.
Product images courtesy of Potter Roemer.
