Product Description

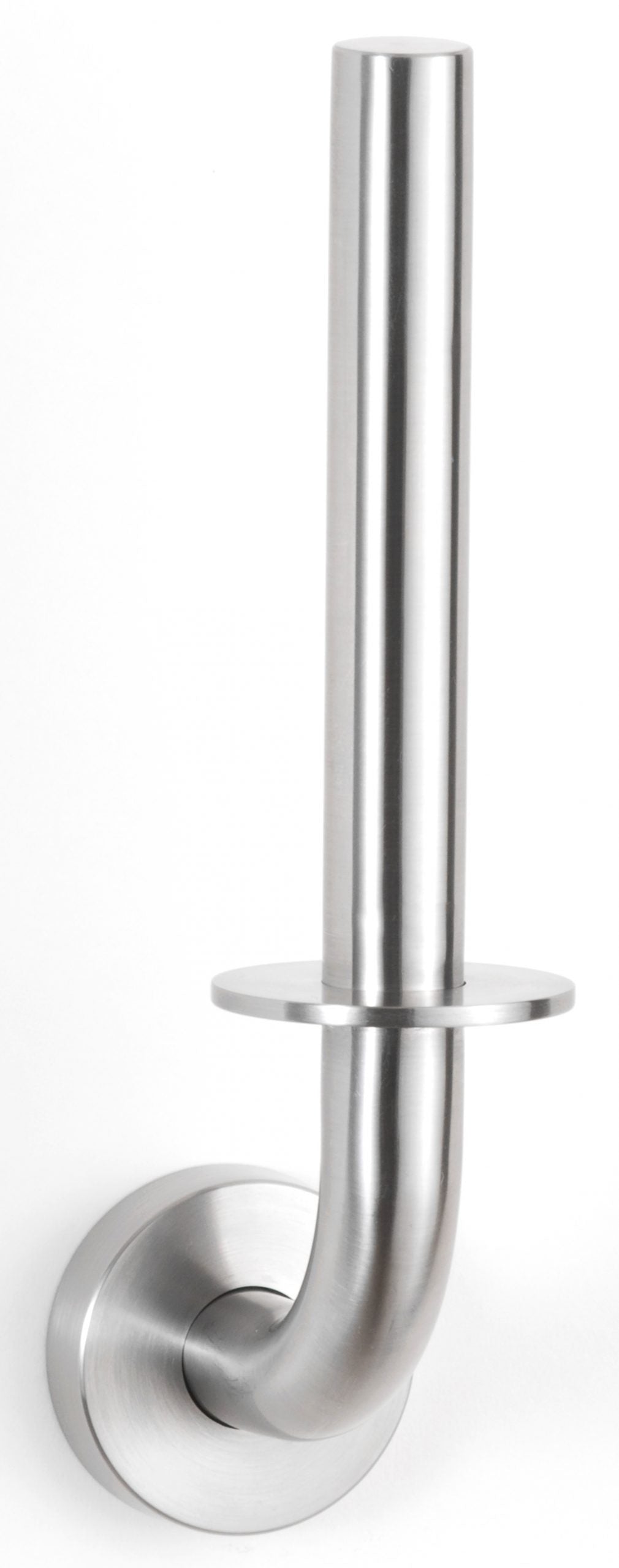

Threaded escutcheon conceals mounting plate, provides snug fit to the wall. Vertical post accommodates one roll up to 5" (125mm) diameter and a core size from 3/4" (20mm) to 1-1/2" (40mm). Escutcheon diameter 2" (50mm). Overall height 8" (205mm). Unit projects 3-1/2" (90mm) from wall (without tissue roll).
Documents
- Bobrick B-541 technical data sheet (PDF): dimensions, mounting and installation details.
- Bobrick B-541 product page: CAD drawings, BIM objects and guide specifications.
Need submittals for a full Division 10 package? Email us your schedule and we will send the full submittal set with pricing.
