Product Description

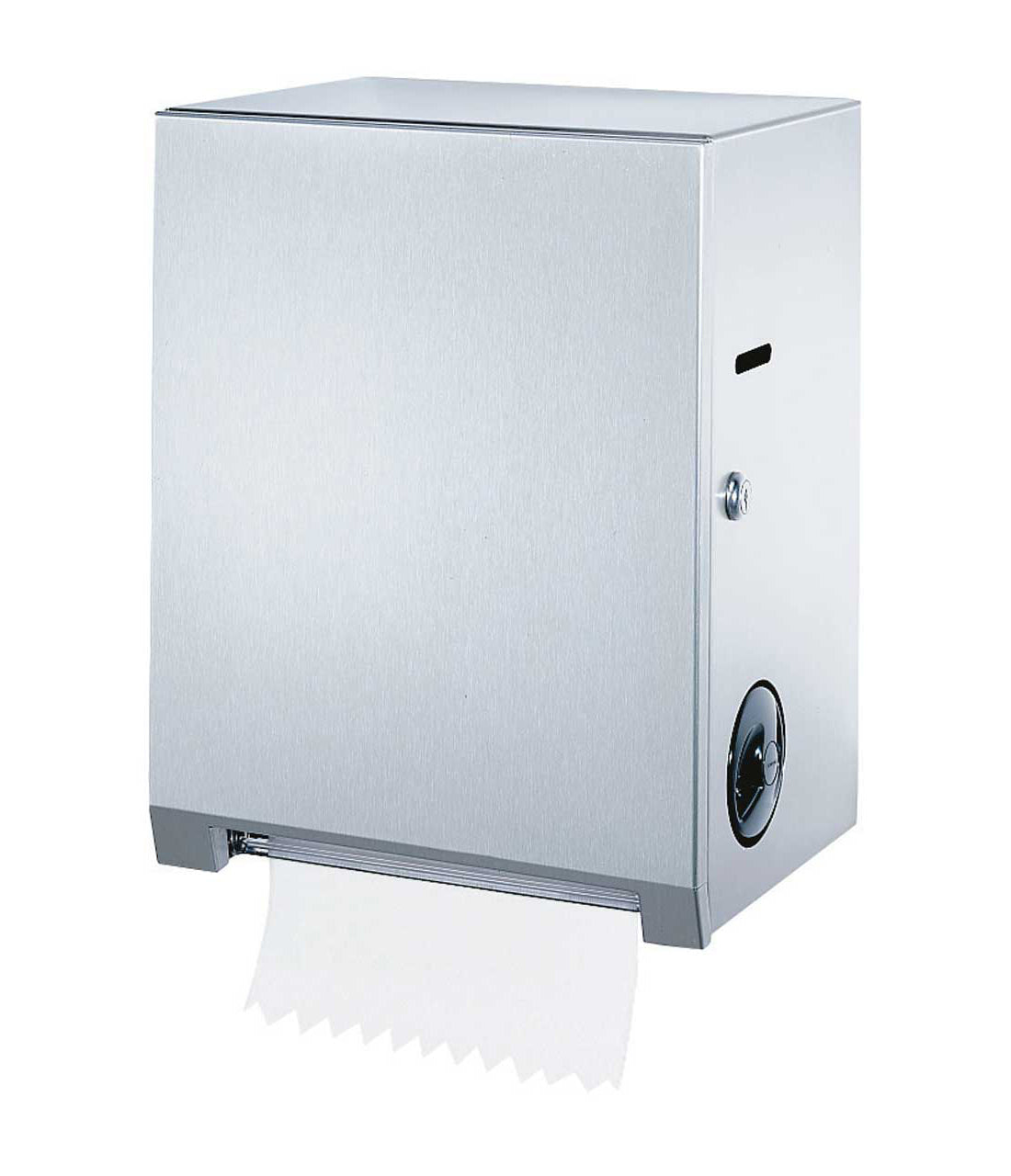

Satin-finish stainless steel. "touch-free" pull-towel mechanism dispenses 12" (305mm) length per pull [1.8 lbs (8.0 N)] of universal towels. Accommodates 8" (205mm) wide, up to 8" (205mm) diameter rolls, 800 ft (244m) long, plus 3 1/2" (90mm) dia. stub roll with automatic transfer. Door has tumbler lock and piano-hinge. Unit 11 3/4" W, 15" H, 9" D (300 x 380 x 230mm).
Documents
- Bobrick B-2860 technical data sheet (PDF): dimensions, mounting and installation details.
- Bobrick B-2860 product page: CAD drawings, BIM objects and guide specifications.
Need submittals for a full Division 10 package? Email us your schedule and we will send the full submittal set with pricing.
