Filter fire extinguisher cabinets
-
JL Industries Cosmopolitan C8134 Trimless Fire Extinguisher Cabinet, Stainless Steel, 9 x 18 x 5-1/2 in
The JL Industries Cosmopolitan C8134 is a trimless stainless steel fire extinguisher cabinet for 2.5 to 6 lb portable extinguishers (6 lb mounted to the tub)...
SKU: C8134F10 -
JL Industries Cosmopolitan C2034 Trimless Fire Extinguisher Cabinet, Stainless Steel, 12 x 27 x 7-3/4 in
The JL Industries Cosmopolitan C2034 is a trimless stainless steel fire extinguisher cabinet for up to 20 lb portable extinguishers (20 lb mounted to the tub...
SKU: C2034F10 -
JL Industries Cosmopolitan C1034 Trimless Fire Extinguisher Cabinet, Stainless Steel, 10-1/2 x 24 x 6 in
The JL Industries Cosmopolitan C1034 is a trimless stainless steel fire extinguisher cabinet for 2.5 to 10 lb portable extinguishers. It has a 10-1/2 x 24 x ...
SKU: C1034F10 -
JL Industries Academy C8124 Trimless Fire Extinguisher Cabinet, Aluminum, 9 x 18 x 5-1/2 in
The JL Industries Academy C8124 is a trimless aluminum fire extinguisher cabinet for 2.5 to 6 lb portable extinguishers (6 lb mounted to the tub). It has a 9...
SKU: C8124F10 -
JL Industries Academy C2024 Trimless Fire Extinguisher Cabinet, Aluminum, 12 x 27 x 7-3/4 in
The JL Industries Academy C2024 is a trimless aluminum fire extinguisher cabinet for up to 20 lb portable extinguishers (20 lb mounted to the tub). It has a ...
SKU: C2024F10 -
JL Industries Academy C1024 Trimless Fire Extinguisher Cabinet, Aluminum, 10-1/2 x 24 x 6 in
The JL Industries Academy C1024 is a trimless aluminum fire extinguisher cabinet for 2.5 to 10 lb portable extinguishers. It has a 10-1/2 x 24 x 6 in inside ...
SKU: C1024F10 -
JL Industries Ambassador C8114 Trimless Fire Extinguisher Cabinet, Steel, 9 x 18 x 5-1/2 in
The JL Industries Ambassador C8114 is a trimless steel fire extinguisher cabinet for 2.5 to 6 lb portable extinguishers (6 lb mounted to the tub). It has a 9...
SKU: C8114F10 -
JL Industries Ambassador C2014 Trimless Fire Extinguisher Cabinet, Steel, 12 x 27 x 7-3/4 in
The JL Industries Ambassador C2014 is a trimless steel fire extinguisher cabinet for up to 20 lb portable extinguishers (20 lb mounted to the tub). It has a ...
SKU: C2014F10 -
JL Industries Ambassador C1014 Trimless Fire Extinguisher Cabinet, Steel, 10-1/2 x 24 x 6 in
The JL Industries Ambassador C1014 is a trimless steel fire extinguisher cabinet for 2.5 to 10 lb portable extinguishers. It has a 10-1/2 x 24 x 6 in inside ...
SKU: C1014F10
At least 2 products are needed to make a valid comparison.
You can compare up to 5 products.
JL Industries cabinet guide. How to read a JL model number and pick the series, mounting, door and fire rating.
Which JL Industries series do you need?
| Series | Door and trim | Model numbers | Series page |
|---|---|---|---|
| Ambassador (37 cabinets) | Cold-rolled steel, white powder coat | Third digit 1, for example C1017 | Ambassador data sheet |
| Academy (37 cabinets) | Clear anodized aluminum | Third digit 2, for example C1027 | Academy data sheet |
| Cosmopolitan (35 cabinets) | Type 304 stainless steel, #4 finish | Third digit 3, for example C1037 | Cosmopolitan data sheet |
Ambassador steel
Academy aluminum

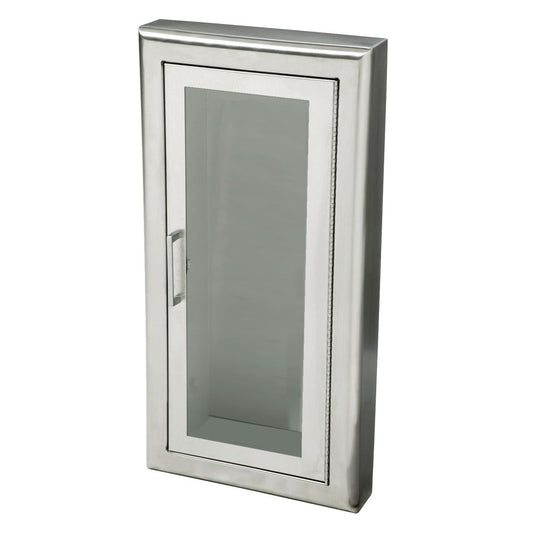

Cosmopolitan stainless steelHow do JL Industries model numbers work?
A JL model number has four digits. The first two give the tub size, the third gives the series and the last gives the mounting and trim. A C1017 is a 10-1/2 x 24 x 6 in tub (10), Ambassador steel (1), semi-recessed with 3 in rolled trim (7).
| Last digit | Mounting | Trim | Example |
|---|---|---|---|
| 5 | Recessed | 3/8 in flat trim | C1015 |
| 6 | Semi-recessed | 1-1/2 in square trim | C1016 |
| 7, 2 or 8 | Semi-recessed | Rolled trim, 2-1/2 to 4-1/2 in | C1017, C1012, C1018 |
| 4 | Trimless | None; set before the wall finish | C1014 |
| 3 | Surface | None; hangs on the wall | C1013 |
| First two digits | Inside tub (in) | Holds |
|---|---|---|
| 81 | 9 x 18 x 5-1/2 | 2.5 to 6 lb |
| 18 | 10-1/2 x 24 x 5-1/2 | 2.5 to 6 lb |
| 10 | 10-1/2 x 24 x 6 | 2.5 to 10 lb |
| 20 | 12 x 27 x 7-3/4 | Up to 20 lb |
| 30 | 16 x 32 x 7-3/4 | Up to 20 lb, larger tub |
| 40 | 20 x 27 x 7-3/4 | Two extinguishers |
Which door style and glazing should you choose?
- Full View (F, G): one full-height window; G adds a Saf-T-Lok.
- Horizontal Duo (D, E) and Vertical Duo (V, W): the window is split into two panels; E and W add a Saf-T-Lok.
- Small Window with Saf-T-Lok (B10): a small view window in a locking door.
- Solid (S21, L22): no glazing; L22 adds a Saf-T-Lok.
Glazed doors come in clear acrylic (code 10, standard), clear safety glass (18), bronze acrylic (15) or gray acrylic (16). The full part number is C plus the model plus the door and glazing code, for example C1017F10.
When do you need an FX2 fire-rated cabinet?
Choose FX2 when the cabinet goes into a fire-rated wall. JL Industries lists its FX2 cabinets as a UL listed membrane penetration firestop system for walls up to 2 hours (UL 1479). The part number ends in FX2, for example C1017F10FX2. Surface cabinets do not penetrate the wall, so they have no FX2 version. Confirm the wall assembly with the architect or the authority having jurisdiction.
For mounting, finish and size advice across both brands, read the fire extinguisher cabinet buying guide.
